BLOW 100

Out of Stock

/ шт

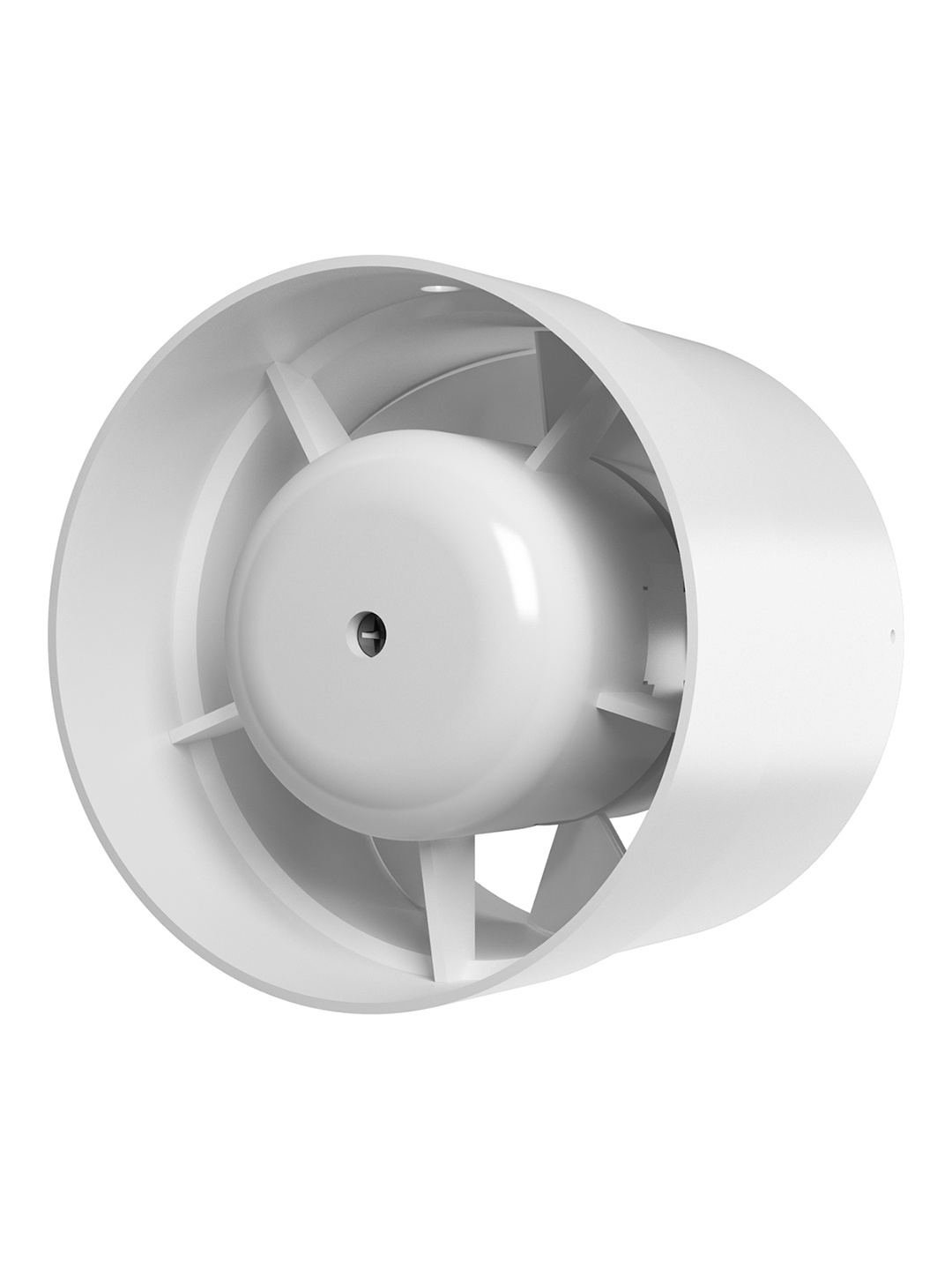

BLOW 100

SKU BLOW 100

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Product type — Domestic fans

Frequency, Hz — 50

Design Features — 3-year warranty, Cutout overheating protection, Ingress protection against water splashes and external solid particles with a diameter greater than or equal to 12.5 mm, Polystyrene, Sleeve-bearing motor

Installation diameter, mm — 100

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

Application: the BLOW duct fan operates for both supply and exhaust airflow, depending on system configuration.

Purpose: removal of humid air and unpleasant odors, maintaining a comfortable microclimate.

Mounting:

designed for installation in round ducts, it can be mounted between two plastic ducts using the DSPK mounting bracket.
the BLOW fan is also compatible with ventilation grilles of matching diameter.

Design features:

Material: polystyrene – a plastic with high rigidity and a matte surface.
Sleeve-bearing motor with cutout overheating protection.

Control: mechanical.

Specifications:

Capacity: 107 m³/h.

Pressure: 46 Pa.

Noise level: 35 dB(A).

Ingress protection (IP) rating: IP24.

Warranty: 3 years.

Brand

VentEurope

Product type

Domestic fans

Frequency, Hz

Design Features

3-year warranty, Cutout overheating protection, Ingress protection against water splashes and external solid particles with a diameter greater than or equal to 12.5 mm, Polystyrene, Sleeve-bearing motor

Installation diameter, mm

100

External diameter

100

Width, mm

103

Overall depth, mm

Protection class

IP24

Gross weight, kg

0.5

Net weight, kg

0.4

Power consumption, W

Voltage, V

220

Working mechanism

Axial

Ventilation principle

Supply and exhaust

Control

Mechanical

Warranty

3 years

Color

White

Quantity in transport package

36 pcs.

Vendor code

BLOW 100

Series

BLOW

Height, mm

103

Noise level, dB(A)

Capacity, m3/h

107

Contents

Fan assembly, manual/operating instructions, packaging box

Placing

Channel

Material

Polystyrene

Color (decorative)

White

Country of manufacture

Turkey

Form type

Round
