CIRCLE 100 BD

Out of Stock

/ шт

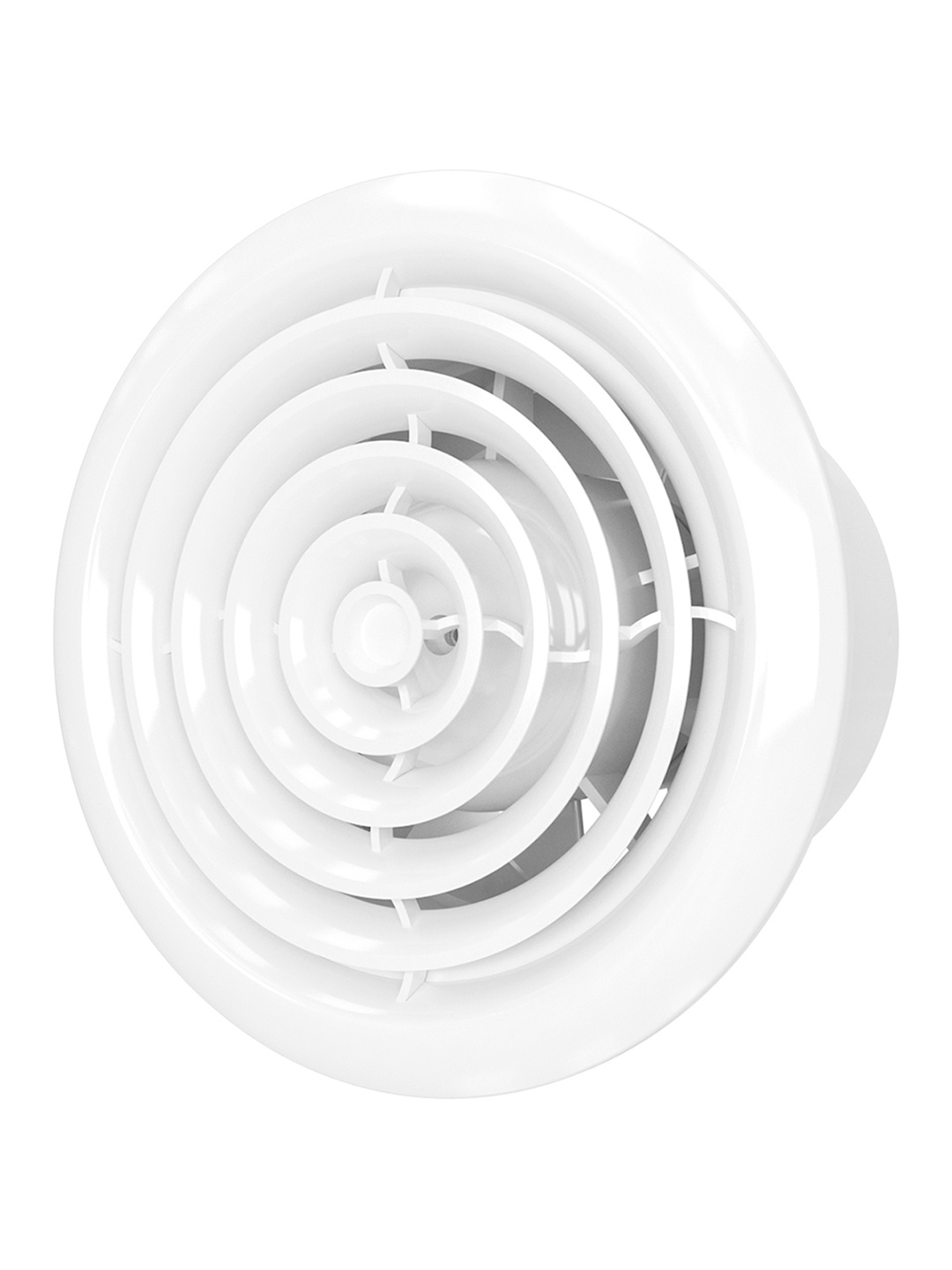

CIRCLE 100 BD

SKU CIRCLE 100 BD

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Product type — Domestic fans

Frequency, Hz — 50

Design Features — 3-year warranty, Cutout overheating protection, Ingress protection against dust and water splashes, Mounting with self-tapping screws, Polystyrene, Sleeve-bearing motor

Additional Features — Back-draught shutter

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

Application: domestic exhaust ventilation (bathrooms, toilets, kitchens).

Purpose: removal of humid air and unpleasant odors, maintaining a comfortable microclimate.

Mounting:

using self-tapping screws,
for mounting in round ducts.

Design features:

Classic design with a round, open face panel. Equilateral louvers cover the ventilation duct.
Features high capacity, enabling the removal of large volumes of polluted air.
Material: polystyrene – a plastic with high rigidity and a matte surface.
Sleeve-bearing motor with cutout overheating protection.

Model features:

The back-draught shutter protects the room from back draught and the ingress of unpleasant odors, dirt, and insects from the ventilation duct.

Control: mechanical.

Specifications:

Capacity: 107 m³/h.

Pressure: 46 Pa.

Noise level: 35 dB(A).

Ingress protection (IP) rating: IP24.

Warranty: 3 years.

Brand

VentEurope

Product type

Domestic fans

Frequency, Hz

Design Features

3-year warranty, Cutout overheating protection, Ingress protection against dust and water splashes, Mounting with self-tapping screws, Polystyrene, Sleeve-bearing motor

Additional Features

Back-draught shutter

Installation diameter, mm

100

External diameter

100

Width, mm

143

Overall depth, mm

101

Protection class

IP24

Mounting height, mm

125

Mounting width, mm

125

Gross weight, kg

0.5

Net weight, kg

0.45

Power consumption, W

Voltage, V

220

Installation method

Overhead

Working mechanism

Axial

Ventilation principle

Exhaust

Control

Mechanical

Warranty

3 years

Color

White

Quantity in transport package

28 pcs.

Flange depth, mm

Blind type

Radial

Vendor code

CIRCLE 100 BD

Series

CIRCLE

Height, mm

143

Noise level, dB(A)

Capacity, m3/h

107

Pressure, Pa

Contents

Fan assembly, manual/operating instructions, packing box, Mounting kit

Placing

Wall mounted

Material

Polystyrene

Color (decorative)

White

Country of manufacture

Turkey

Check valve depth in closed state, mm

Form type

Round
