CLASSIC 125

Out of Stock

/ шт

CLASSIC 125

SKU CLASSIC 125

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Base model — Y

Product type — Domestic fans

Current consumption, A — 0.07

Frequency, Hz — 50

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

Application: continuous or periodic exhaust ventilation of bathrooms, showers, kitchens and other domestic premises.

Purpose: removal of humid air and unpleasant odors, maintaining a comfortable microclimate.

Mounting:

on the wall using self-tapping screws (included in the kit).

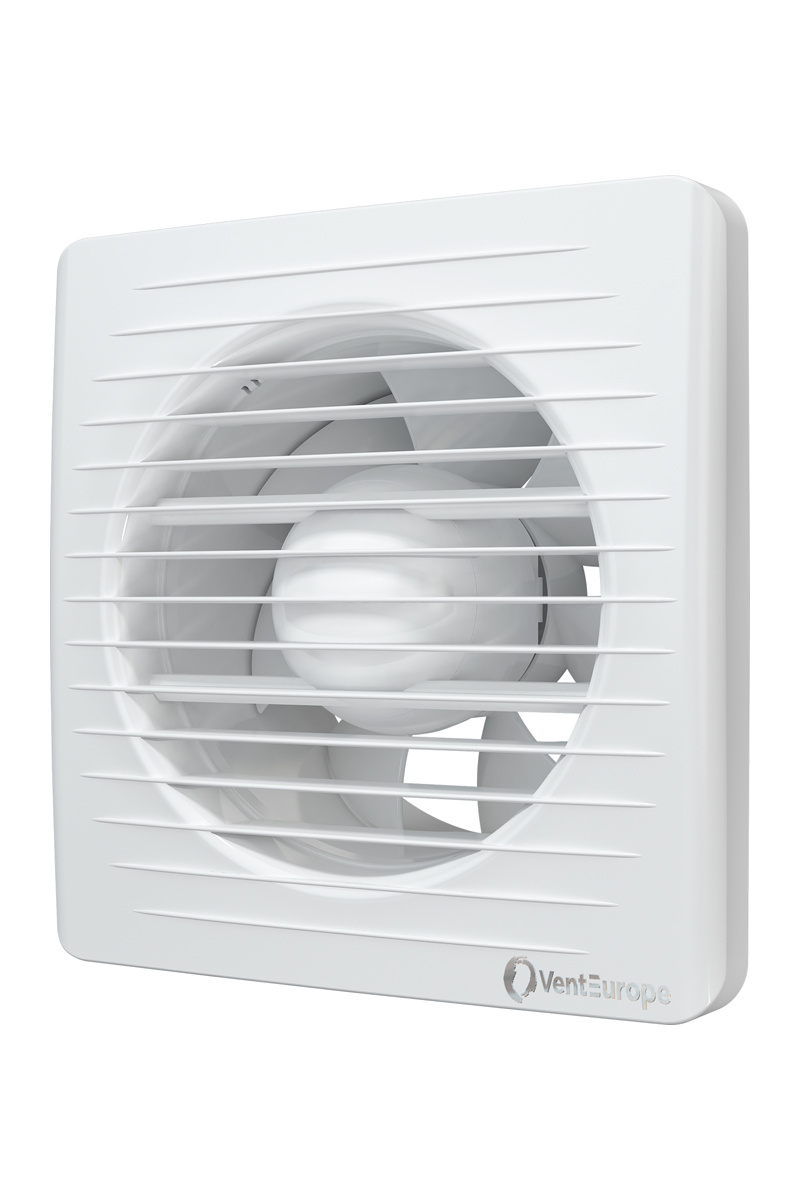

Design features:

Classic housing shape. Face panel with straight horizontal louvres.
Impact-resistant, durable ABS plastic that will not yellow.
Sleeve-bearing motor with cutout overheating protection.
The fan is equipped with a fuse (switches off the fan if the winding heats up above +130 °C).
An insect net serves as a barrier against the ingress of insects and debris from the ventilation duct.
Light indication of operation.

Control: mechanical.

Specifications:

Capacity: 183 m³/h

Pressure: 50 Pa

Noise Level: 36 dB(A)

Ingress Protection Rating: IP24

Warranty: 5 years.

Brand

VentEurope

Base model

Product type

Domestic fans

Current consumption, A

0.07

Frequency, Hz

Design Features

5-year warranty, ABS plastic, Cutout overheating protection, Ingress protection against dust and water splashes, Insect net, LED indication, Mounting with self-tapping screws, Sleeve-bearing motor

Installation diameter, mm

125

External diameter

125

Width, mm

175

Overall depth, mm

Protection class

IP24

Mounting height, mm

155

Mounting width, mm

155

Gross weight, kg

0.7

Net weight, kg

0.6

Power consumption, W

Voltage, V

220

Installation method

Overhead

Working mechanism

Axial

Ventilation principle

Exhaust

Control

Mechanical

Warranty

5 years

Color

White

Quantity in transport package

18 pcs.

Flange depth, mm

Blind type

Direct

Vendor code

CLASSIC 125

Series

CLASSIC

Height, mm

175

Noise level, dB(A)

Capacity, m3/h

183

Pressure, Pa

Contents

Fan assembly, Manual/operating instructions, Mounting kit

Placing

Wall mounted

Material

ABS plastic

Color (decorative)

White

Country of manufacture

Turkey

Form type

Square
