DRAD 400

SKU DRAD 400

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Base model — N

Product type — Commercial fan

Performance max, m3/h — 3300

Frequency, Hz — 50

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

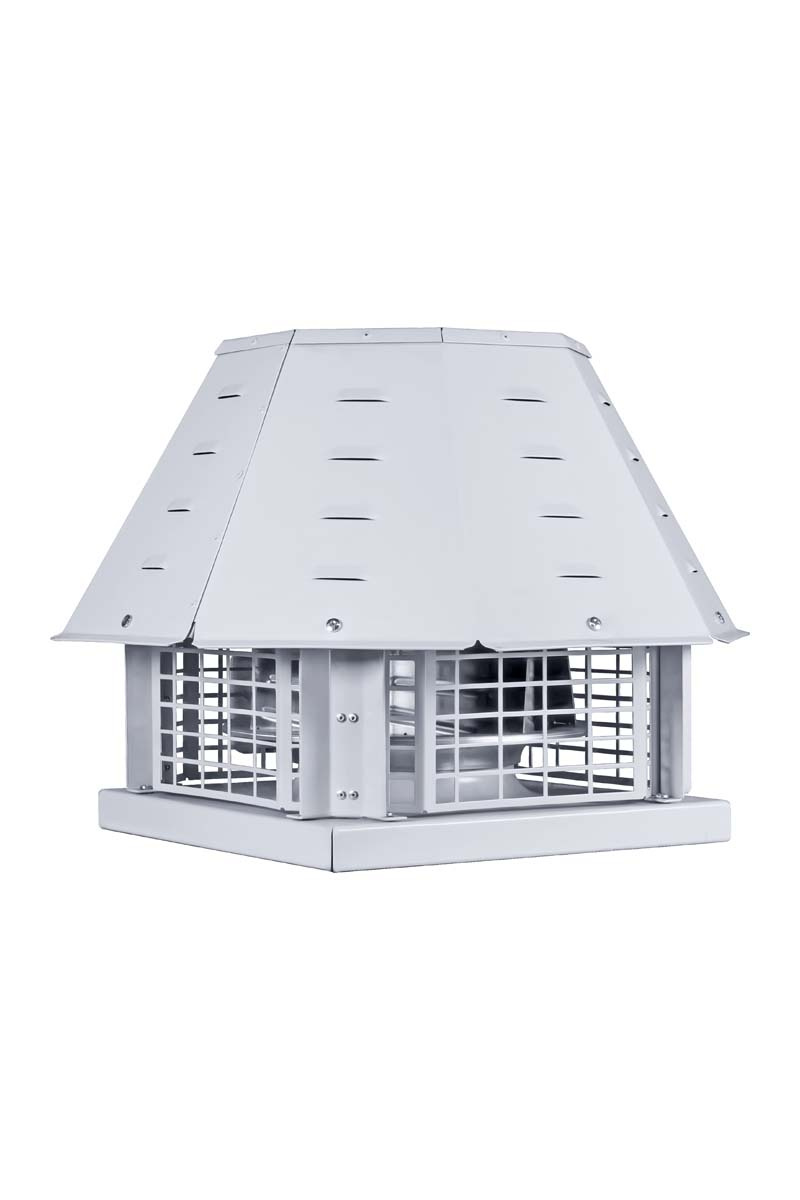

Roof-mounted centrifugal fan with horizontal air discharge. The motor is located outside the air stream, protected from dust, oils, and dirt. Horizontal air discharge allows heated air to be carried away from the motor, preventing overheating. Operating temperature: –20 °C to +50 °C. Motor efficiency class IE3, insulation class F, ingress protection rating IP55. Housing made of galvanized sheet steel. Impeller made of aluminum. Roof mounting preserves indoor space. Main components are accessible for maintenance.

Operating parameters at 380 V AC, 50 Hz

Power consumption, (W): 550 W

Current consumption, (A): 0.01 A

Rotational frequency, (RPM): 1478 RPM

Capacity, (m³/h): 3300 m³/h

Pressure, (Pa): 395 Pa

Noise level, (dB(A)): 60 dB(A)

Brand

VentEurope

Base model

Product type

Commercial fan

Performance max, m3/h

3300

Frequency, Hz

Protection class

IP55

Mounting height, mm

526

Power consumption, W

550

Voltage, V

380

Installation method

Roof mounted, horizontal discharge

Ventilation principle

Radial fan

Housing material

Galvanized steel

Bushing material

Galvanized steel

Warranty

1 year

Quantity in transport package

1 pcs

Flexible

Vendor code

DRAD 400

Series

DRAD

Noise level, dB(A)

Pressure, Pa

395

Placing

Roof

Color (decorative)

Silver

Country of manufacture

Turkey

Form type

Square

Eccentric
