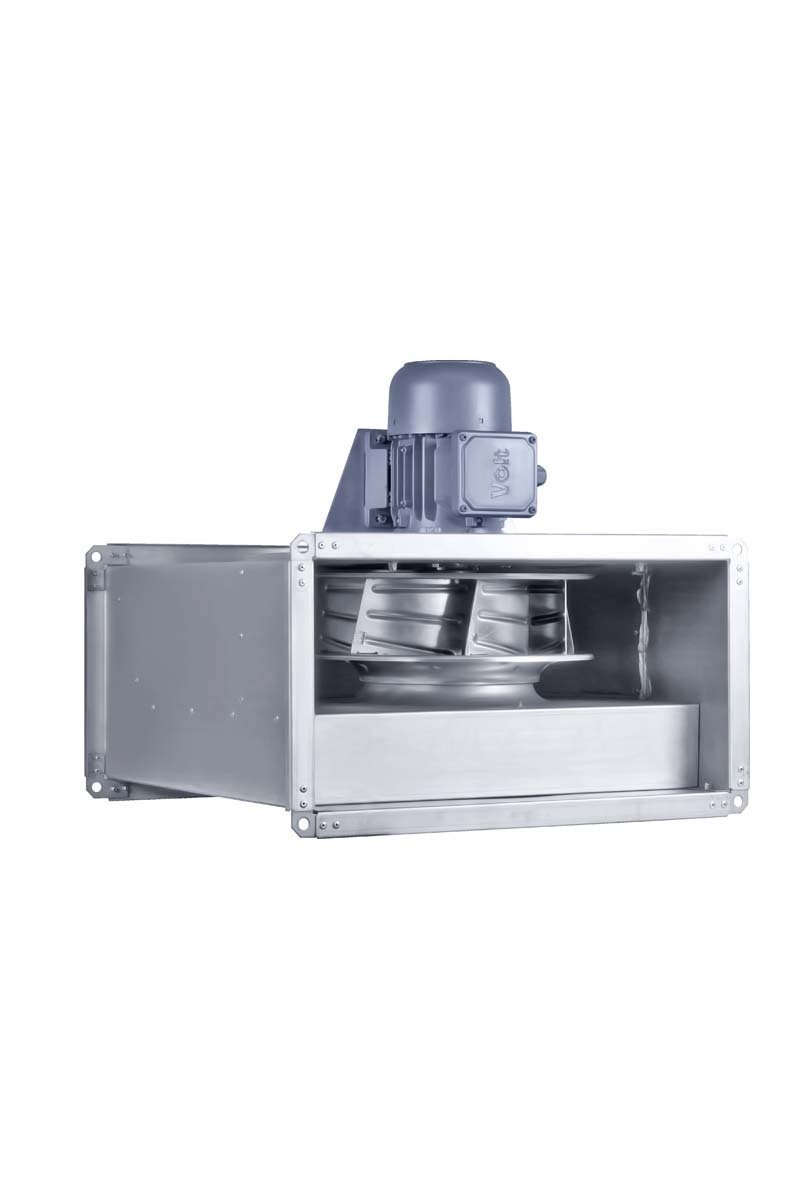

DREC 315
Radial duct fan with external motor, designed for air extraction in rectangular ducts of supply and exhaust ventilation systems. The motor is located outside the air stream, protecting the mechanism from aggressive operating environments. Operating temperature: –20 °C to +50 °C. Motor efficiency class IE3, insulation class F, ingress protection rating IP55. Applications: residential, public and industrial premises, retail areas, garages, parking lots, chemical production facilities, equipment cooling zones. The housing is made of galvanized sheet steel. The impeller is made of aluminum, which provides corrosion resistance, spark safety, low weight, and low vibration and noise levels. The fan can be mounted in any orientation. An inspection hatch is provided for cleaning and maintenance without disassembly.
Operating parameters at 380 V AC, 50 Hz
Power consumption, (W): 250 W
Current consumption, (A): 0.01 A
Rotational frequency, (RPM): 1469 RPM
Capacity, (m³/h): 1600 m³/h
Pressure, (Pa): 245 Pa
Noise level, (dB(A)): 58 dB(A)
