ELEGIA 100 BD Ivory

Out of Stock

/ шт

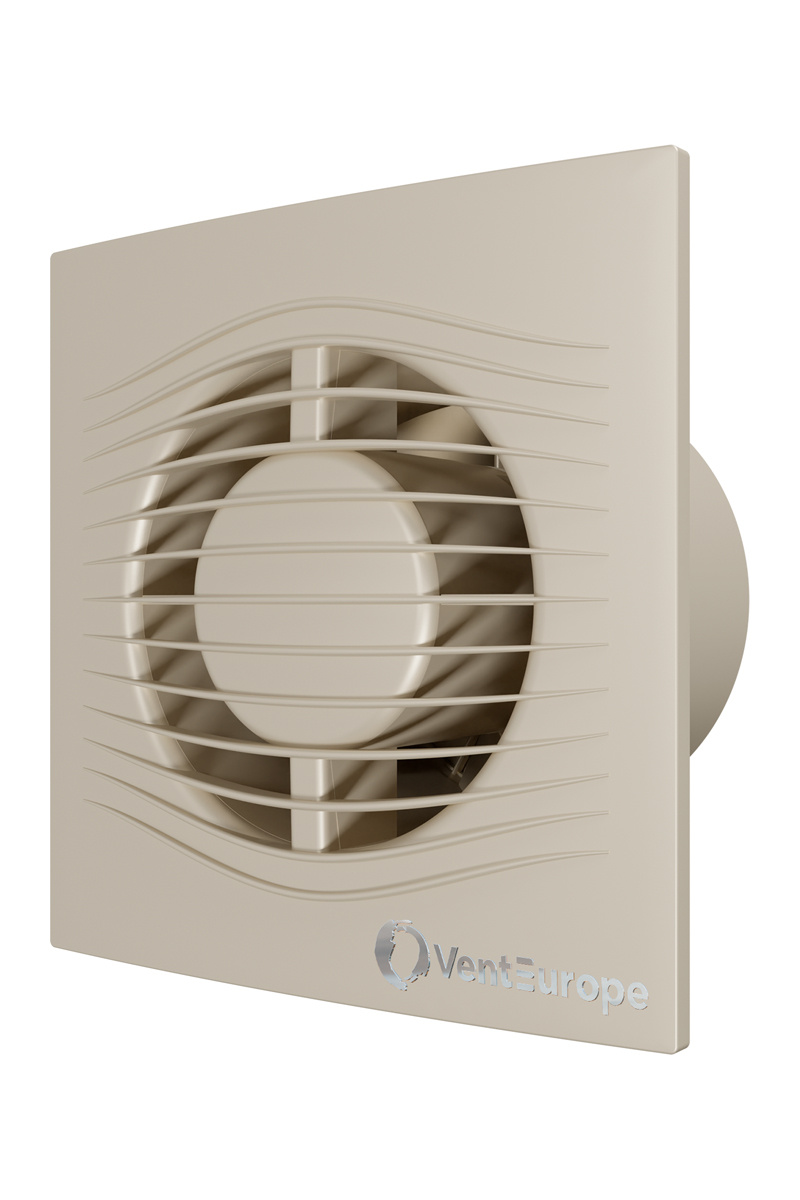

ELEGIA 100 BD Ivory

SKU ELEGIA 100 BD Ivory

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Product type — Domestic fans

Current consumption, A — 0.04

Design Features — 5-year warranty, ABS plastic, Back-draught shutter with plastic wings, Ball-bearing motor, Cutout overheating protection, For exhaust systems, Ingress protection against small particles and water jets, LED indication, Low noise level level, Low power consumption, Mounting with self-tapping screws, Noiseless back-draught shutter, Thin face panel

Additional Features — Design series

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

Application: continuous or periodic exhaust ventilation of bathrooms, showers, kitchens and other domestic premises.

Purpose: removal of humid air and unpleasant odors, maintaining a comfortable microclimate.

Mounting:

on the wall using self-tapping screws (included in the kit).
can be mounted in the ceiling (when the back-draught shutter is removed).

Design features:

Classic housing shape. Face panel with straight horizontal louvres.
The thin face panel allows the fan to be mounted almost flush with the surface.
Impact-resistant, durable ABS plastic that will not yellow.
The ball-bearing motor offers durability, quiet operation, and high efficiency. It allows the fan to be installed in ceilings.
The fan is equipped with a fuse (switches off the fan if the winding heats up above +130 °C).
The noiseless plastic back‑draught shutter with silicone stoppers protects the room from back draught and the ingress of unpleasant odors, dirt, and insects from the ventilation duct.
Light indication of operation.

Model features:

Color: Ivory

Control: mechanical.

Specifications:

Capacity: 100 m³/h

Pressure: 39 Pa

Noise Level: 25 dB(A)

Ingress Protection Rating: IP24

Warranty: 5 years.

Brand

VentEurope

Product type

Domestic fans

Current consumption, A

0.04

Design Features

5-year warranty, ABS plastic, Back-draught shutter with plastic wings, Ball-bearing motor, Cutout overheating protection, For exhaust systems, Ingress protection against small particles and water jets, LED indication, Low noise level level, Low power consumption, Mounting with self-tapping screws, Noiseless back-draught shutter, Thin face panel

Additional Features

Design series

Installation diameter, mm

100

External diameter

100

Width, mm

150

Overall depth, mm

Protection class

IP45

Mounting height, mm

131

Mounting width, mm

131

Gross weight, kg

0.55

Net weight, kg

0.5

Power consumption, W

7.8

Voltage, V

220

Installation method

Overhead

Working mechanism

Axial

Ventilation principle

Exhaust

Control

Mechanical

Warranty

5 years

Color

Ivory

Quantity in transport package

16 pcs.

Flange depth, mm

Vendor code

ELEGIA 100 BD Ivory

Series

ELEGIA

Height, mm

150

Noise level, dB(A)

Capacity, m3/h

100

Pressure, Pa

Contents

Fan, Manual/instruction manual, packaging box, dowel with screws, self-tapping screws, bracket

Placing

Wall-ceiling

Material

ABS plastic

Color (decorative)

Ivory

Country of manufacture

Turkey

Check valve depth in closed state, mm

Form type

Square
