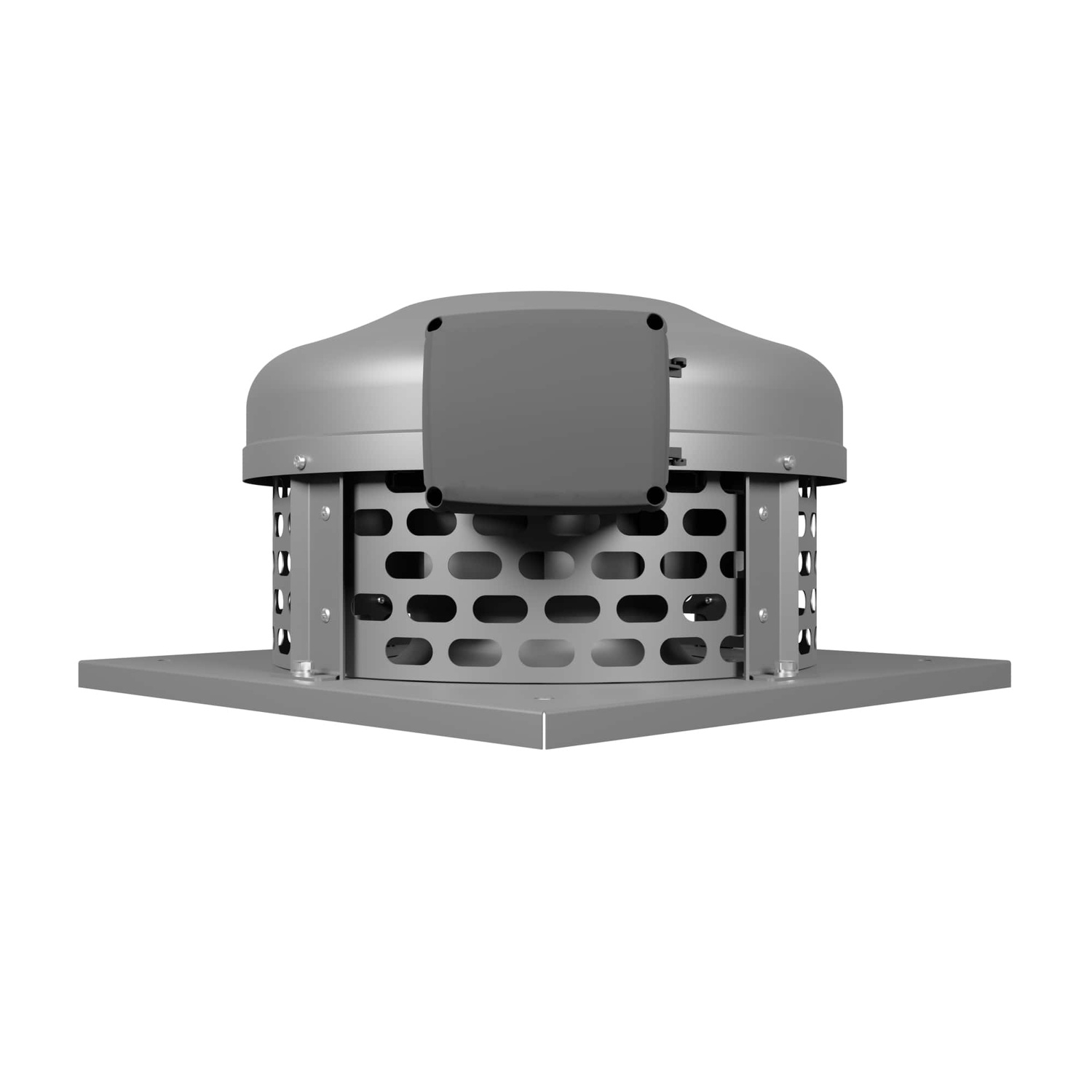

ERF 225

SKU ERF 225

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Product type — Roof fans

Power consumption max, W — 130

Design Features — 2-year warranty, Ball-bearing motor, Galvanized steel, Ingress protection against dust and water splashes, Self-resettable overheating protection with a restart

Width, mm — 370

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

Application: roof fans are designed to maintain air exchange in residential and commercial buildings.

Purpose: removal of polluted air and other non-explosive air–gas mixtures.

Mounting:

The fans are designed to be installed on the roofs of different types in a horizontal position only. The rotational axis of the motor is to be set vertically.
Fans are installed on a mounting cup or onto the roof output of a ventilation shaft (duct).

Design features:

The housing is made of galvanized steel and additionally protected by a polymer coating from environmental influences.
ERF is equipped with a single-phase induction motor with an external rotor and an armature with the high ohmic resistance.
Implemented with a self-resettable overheating protection with a restart.
F-class insulation provides higher reliability and durability of the motor making it resistant to high temperatures.

Specifications:

Capacity: 1100 m³/h

Noise level: 70 dB(A)

Pressure: 600 Pa

Rotation frequency: 2560 RPM

Operating temperature: -30 to +60 °C

Warranty: 2 years.

Brand

VentEurope

Product type

Roof fans

Power consumption max, W

130

Design Features

2-year warranty, Ball-bearing motor, Galvanized steel, Ingress protection against dust and water splashes, Self-resettable overheating protection with a restart

Width, mm

370

Overall depth, mm

370

Protection class

IP 54

Mounting height, mm

300

Mounting width, mm

300

Installation method

Roof

Ventilation principle

Exhaust

Warranty

2 years

Color

Gray

Motor type

Single-phase asynchronous

Vendor code

ERF 225

Series

ERF

Height, mm

209

Noise level, dB(A)

Capacity, m3/h

1100

Pressure, Pa

600

Placing

Roof

Material

Galvanized steel

Country of manufacture

Turkey
