FINE 100 BD

Out of Stock

/ шт

FINE 100 BD

SKU FINE 100 BD

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Base model — Y

Product type — Domestic fans

Current consumption, A — 0.06

Design Features — 5-year warranty, ABS plastic, Back-draught shutter with plastic wings, Ball-bearing motor, Cutout overheating protection, Easily detachable face panel, For exhaust systems, Ingress protection against small particles and water splashes, Mounting with self-tapping screws, Noiseless back-draught shutter

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

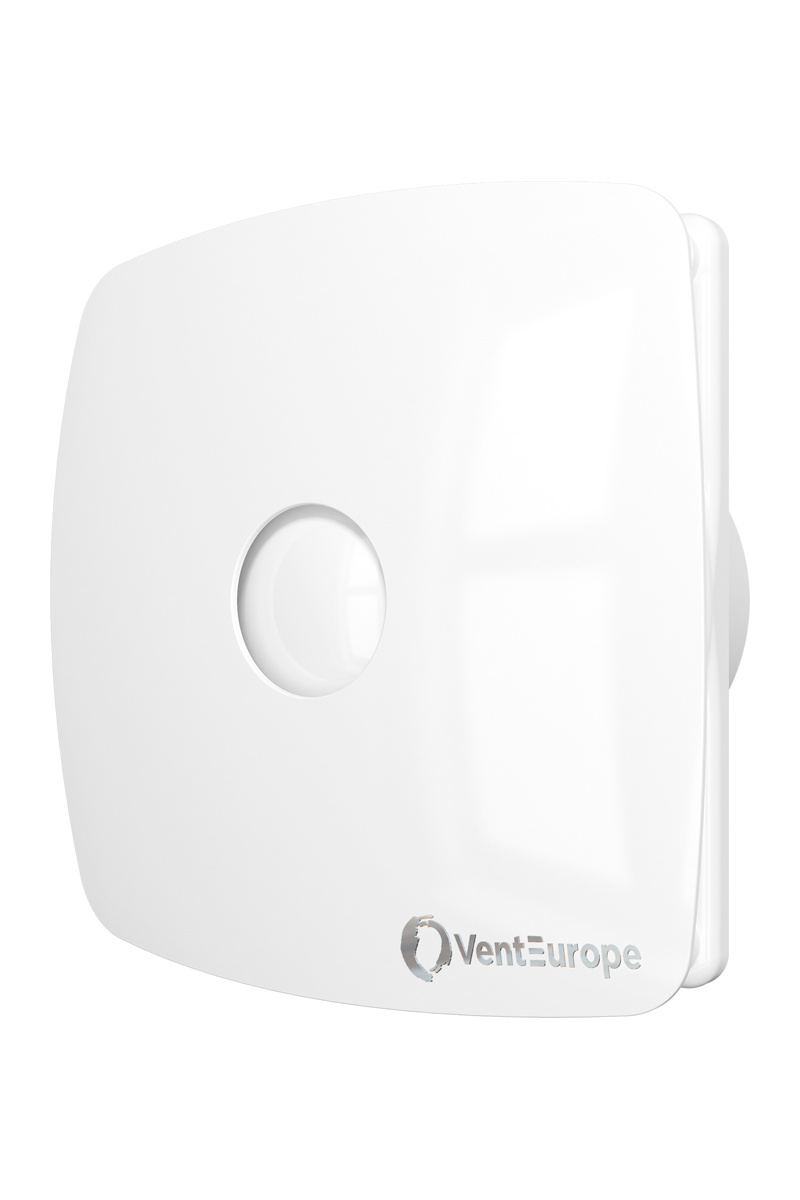

Application: continuous or periodic exhaust ventilation of bathrooms, showers, kitchens and other domestic premises.

Purpose: removal of humid air and unpleasant odors, maintaining a comfortable microclimate.

Mounting:

on the wall using self-tapping screws (included in the kit),
can be mounted in the ceiling (when the back-draught shutter is removed).

Design features:

Impact-resistant, durable ABS plastic that will not yellow.
The ball-bearing motor offers durability, quiet operation, and high efficiency. It allows the fan to be installed in ceilings.
The fan is equipped with a fuse (switches off the fan if the winding heats up above +130 °C).
The noiseless plastic back‑draught shutter with silicone stoppers protects the room from back draught and the ingress of unpleasant odors, dirt, and insects from the ventilation duct.
Light indication of operation.

Model features:

Color: basic white.

Control: mechanical.

Specifications:

Capacity: 100 m³/h

Pressure: 32 Pa

Noise Level: 32 dB(A)

Mounting Flange Diameter: 98 mm

Ingress Protection Rating: IP24

Warranty: 5 years.

Brand

VentEurope

Base model

Product type

Domestic fans

Current consumption, A

0.06

Design Features

5-year warranty, ABS plastic, Back-draught shutter with plastic wings, Ball-bearing motor, Cutout overheating protection, Easily detachable face panel, For exhaust systems, Ingress protection against small particles and water splashes, Mounting with self-tapping screws, Noiseless back-draught shutter

Installation diameter, mm

External diameter

Width, mm

170

Overall depth, mm

118

Protection class

IP24

Mounting height, mm

135

Mounting width, mm

135

Gross weight, kg

0.6

Net weight, kg

0.47

Power consumption, W

Voltage, V

220

Installation method

Overhead

Working mechanism

Axial

Ventilation principle

Exhaust

Control

Mechanical

Warranty

5 years

Color

White

Quantity in transport package

15 pcs.

Flange depth, mm

Vendor code

FINE 100 BD

Series

FINE

Height, mm

170

Noise level, dB(A)

Capacity, m3/h

100

Pressure, Pa

Contents

Fan, Manual/instruction manual, packaging box, dowel with screws, self-tapping screws, bracket

Placing

Wall mounted

Material

ABS plastic

Color (decorative)

White

Country of manufacture

Turkey

Check valve depth in closed state, mm

Form type

Square
