GALE 250

Out of Stock

/ шт

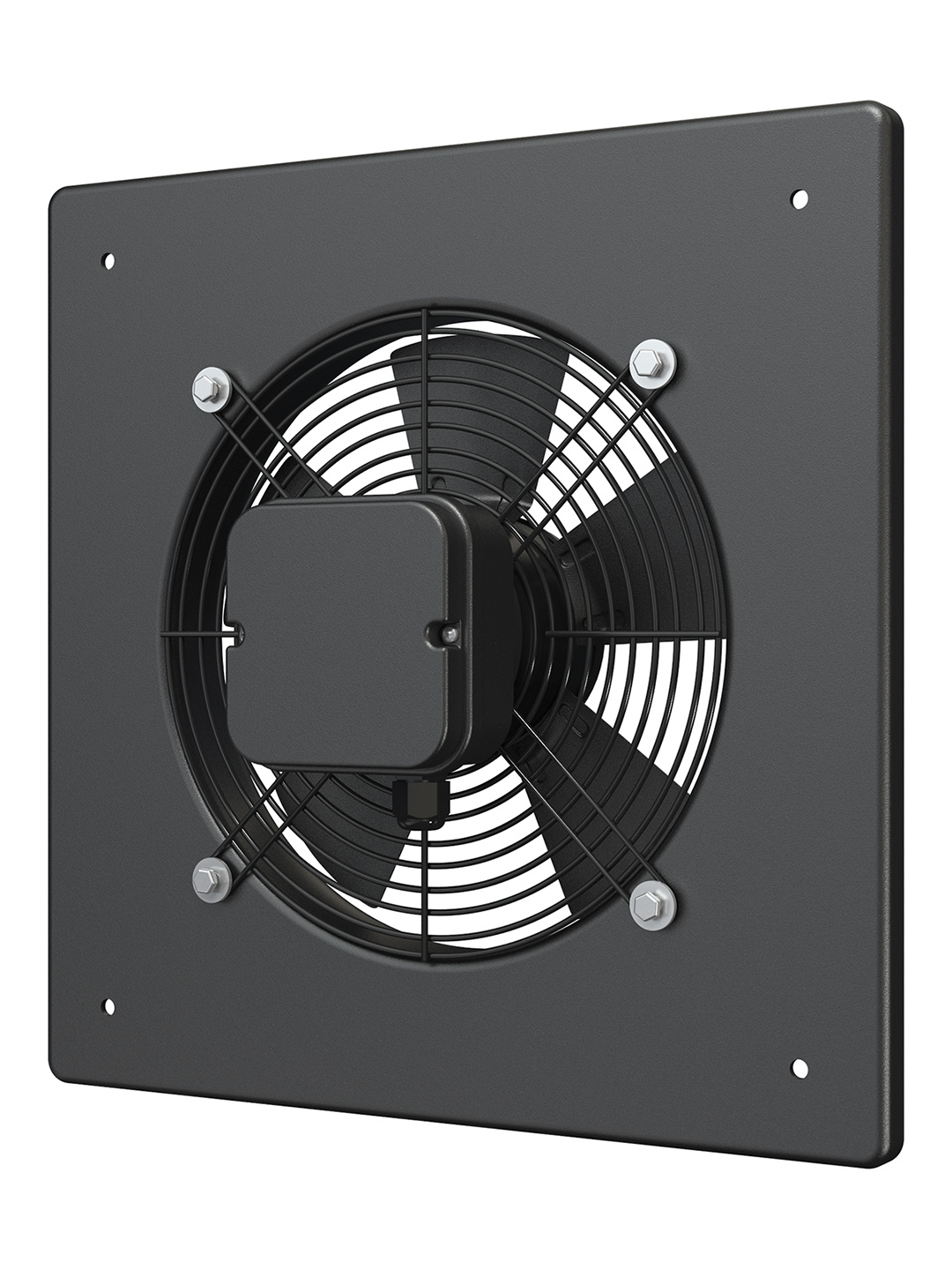

GALE 250

SKU GALE 250

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Product type — Commercial fan

Current consumption, A — 0.36

Design Features — 2-year warranty, Ball-bearing motor, Cutout overheating protection, Ingress protection against water splashed from all directions, Mounting with self-tapping screws, Steel

Installation diameter, mm — 278

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

Application: overhead fans for exhaust and supply-exhaust ventilation systems where high capacity is required with low system resistance. They are used in rooms from which large volumes of air must be removed or it is not possible to install ventilation with ducts.

Purpose: depending on the installation method, they can be used for cooling heat exchangers of compressor and condenser units.

Mounting:

can be mounted on both walls and ceilings,
installation is carried out using a square mounting plate.

Design features:

The ball-bearing motor offers durability, quiet operation, and high efficiency.
The fan is equipped with a fuse (switches off the fan if the winding heats up above +130 °C).

Specifications:

Capacity: 1100 m³/h

Noise level: 60 dB(A)

Pressure: 120 Pa

Rotation frequency: 2480 RPM

Operating temperature: -30 to +60 °C

Warranty: 2 years.

Brand

VentEurope

Product type

Commercial fan

Current consumption, A

0.36

Design Features

2-year warranty, Ball-bearing motor, Cutout overheating protection, Ingress protection against water splashed from all directions, Mounting with self-tapping screws, Steel

Installation diameter, mm

278

External diameter

250

Width, mm

370

Overall depth, mm

135

Mounting height, mm

320

Mounting width, mm

320

Gross weight, kg

4.4

Net weight, kg

Power consumption, W

120

Voltage, V

220

Installation method

Overhead

Working mechanism

Axial

Ventilation principle

Supply and exhaust

Control

Mechanical

Warranty

2 years

Color

Black

Quantity in transport package

1 piece

Motor type

Bipolar

Vendor code

GALE 250

Series

GALE

Height, mm

370

Noise level, dB(A)

Capacity, m3/h

1100

Pressure, Pa

120

Contents

Fan assembly, passport/operating instructions, packaging box

Placing

Wall-ceiling

Material

Steel

Color (decorative)

Black

Country of manufacture

Turkey

Form type

Square
