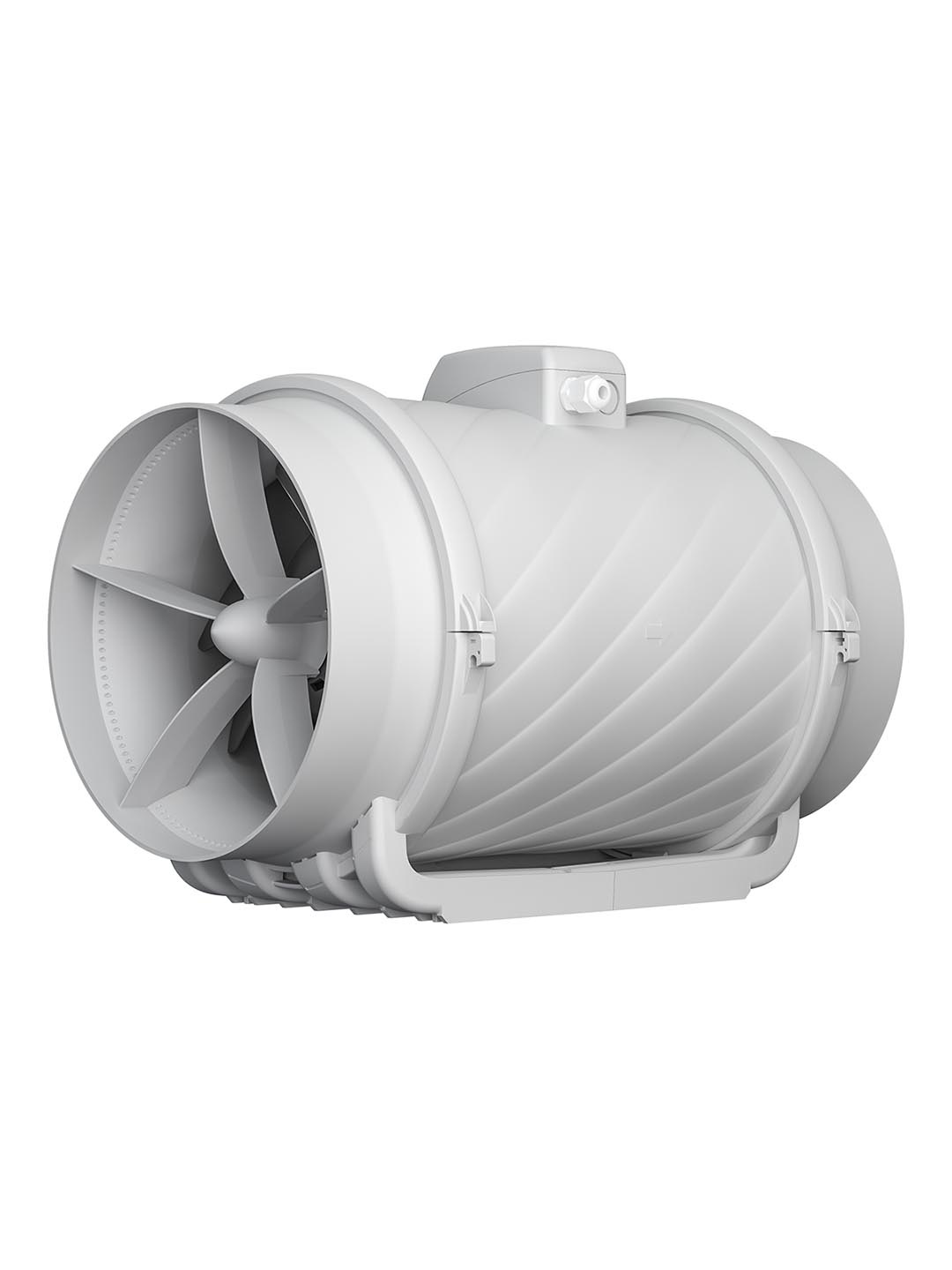

MONSOON 250 2SP

Out of Stock

/ шт

MONSOON 250 2SP

SKU MONSOON 250 2SP

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Base model — N

Product type — Commercial fan

Power consumption min, W — 134

Power consumption max, W — 180

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

Application: axial mixed-type duct fan for supply and exhaust ventilation in industrial, commercial, and residential ventilation systems. Suitable for installation in utility rooms of private houses: garages, basements, storage rooms, etc.

Purpose: removal of humid air, unpleasant odors, and other non-explosive air–gas mixtures, for duct mounting in supply and exhaust ventilation systems.

Mounting:

Horizontal or vertical.
Removable central unit with motor and terminal box is attached to the side ducts with plastic clamps.
Clamps are fixed to the surface with self-tapping screws (included).

Design features:

Housing made of high-quality plastic.
Equipped with a single-phase ball-bearing motor with built-in thermal protection and automatic restart.
Terminal box with cable gland.

Specifications (for first and second speed):

Capacity: 1150/1560 m³/h

Noise level: 52/60 dB(A)

Pressure: 371/488 Pa

Rotation frequency: 1985/2550 RPM

Operating temperature: +1 to +40 °C

Warranty: 3 years

Brand

VentEurope

Base model

Product type

Commercial fan

Power consumption min, W

134

Power consumption max, W

180

Performance max, m3/h

1560

Pressure min, Pa

370

Pressure max, Pa

510

Noise level min, dB(A)

Noise level max, dB(A)

Current consumption min, A

0.58

Current consumption max, A

0.78

Frequency, Hz

Design Features

2 speeds, 3-year warranty, Ball-bearing motor, Ingress protection against small particles and splashing water, Mounting with self-tapping screws, Self-resettable overheating protection with a restart, Speed-switch button

Installation diameter, mm

248

External diameter

248

Width, mm

309

Overall depth, mm

455

Installation method

Duct

Working mechanism

Axial

Control

Mechanical

Warranty

3 years

Color

White

Quantity in transport package

1 piece

Flexible

Vendor code

MONSOON 250 2SP

Series

MONSOON

Performance min, m3/h

1150

Height, mm

326

Contents

Fan assembly, key switch, user manual, packing box

Placing

Channel

Material

Plastic

Country of manufacture

Turkey

Form type

Square

Eccentric
