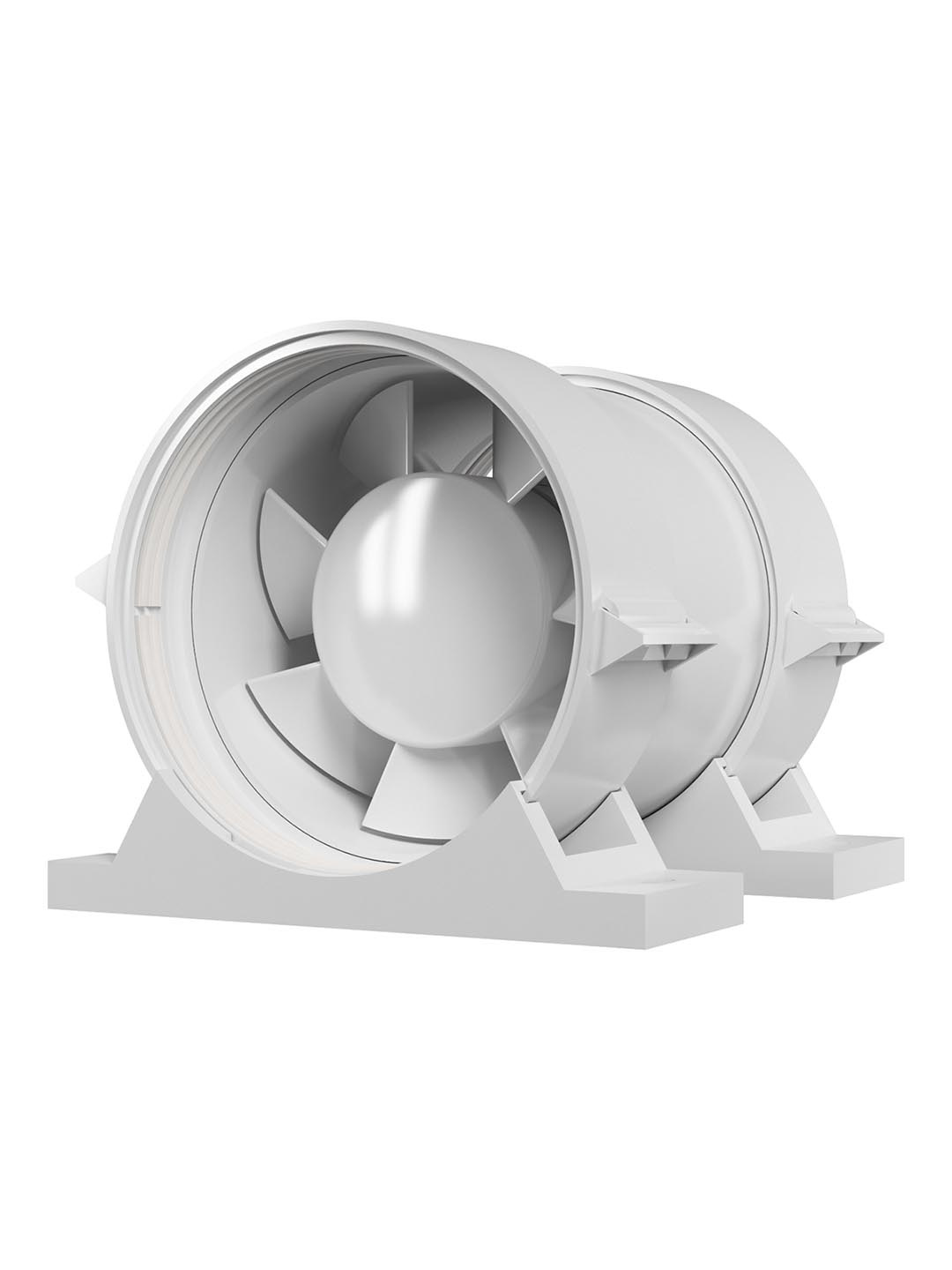

PRIMO 100

Out of Stock

/ шт

PRIMO 100

SKU PRIMO 100

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Product type — Domestic fans

Current consumption, A — 0.06

Design Features — 5-year warranty, ABS plastic, Ball-bearing motor, Cutout overheating protection, Ingress protection against small particles and water splashes, Mounting with self-tapping screws

Installation diameter, mm — 100

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

Application: the PRIMO duct fan is used for exhaust or supply ventilation depending on system configuration.

Purpose: removal of humid air and unpleasant odors, maintaining a comfortable microclimate.

Mounting:

for mounting in round ducts,
mounting brackets included,
can be installed in any orientation: vertical, horizontal, or diagonal.

Design features:

Convenient mounting scheme ensures easy installation. During maintenance or removal, there’s no need to dismantle the ductwork.
Features high capacity, enabling the removal of large volumes of polluted air.
Impact-resistant, durable ABS plastic that will not yellow.
The ball-bearing motor offers durability, quiet operation, and high efficiency. It allows the fan to be installed in ceilings.
The fan is equipped with a fuse (switches off the fan if the winding heats up above +130 °C).

Control: mechanical.

Specifications:

Capacity: 115 m³/h.

Pressure: 46 Pa.

Noise level: 32 dB(A).

Ingress protection (IP) rating: IP24.

Warranty: 5 years.

Brand

VentEurope

Product type

Domestic fans

Current consumption, A

0.06

Design Features

5-year warranty, ABS plastic, Ball-bearing motor, Cutout overheating protection, Ingress protection against small particles and water splashes, Mounting with self-tapping screws

Installation diameter, mm

100

External diameter

103.6

Width, mm

138

Overall depth, mm

139

Protection class

IP24

Mounting height, mm

122

Mounting width, mm

Gross weight, kg

0.6

Net weight, kg

0.5

Power consumption, W

Voltage, V

220

Working mechanism

Axial

Ventilation principle

Supply and exhaust

Control

Mechanical

Warranty

5 years

Color

White

Quantity in transport package

20 pcs.

Vendor code

PRIMO 100

Series

PRIMO

Height, mm

119

Noise level, dB(A)

Capacity, m3/h

115

Pressure, Pa

Contents

Fan, Manual/instruction manual, packaging box, dowel with screws, self-tapping screws, bracket

Placing

Channel

Material

ABS plastic

Color (decorative)

White

Country of manufacture

Turkey
