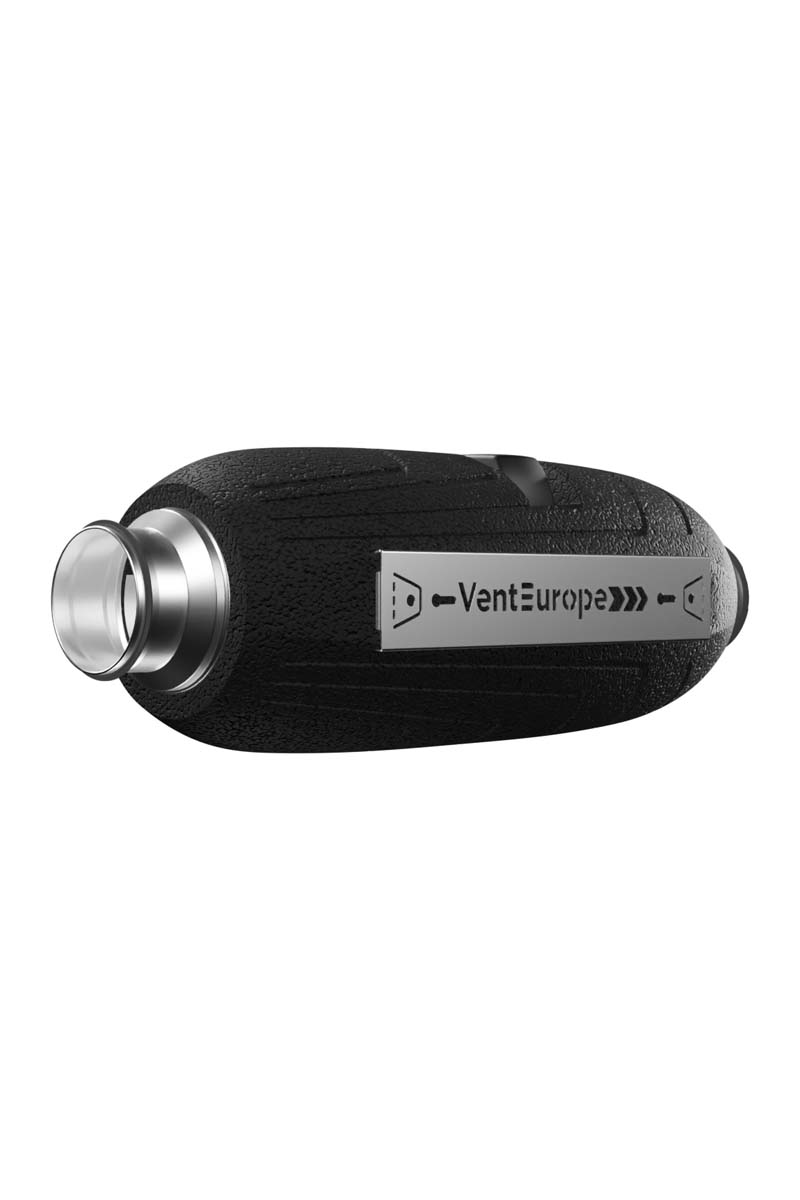

QUIET 100 2SP

Out of Stock

/ шт

QUIET 100 2SP

SKU QUIET 100 2SP

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Base model — N

Product type — Commercial fans

Power consumption min, W — 23

Power consumption max, W — 25

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

The QUIET mixed duct fan in a special noise-insulated casing belongs to the quiet fans (noise level from 19 dB(A))* and is designed for premises with high requirements for low noise level. It is used in exhaust ventilation systems in industrial, public and residential buildings when there is a lack of natural draught, as well as for fresh air supply.

Areas of Application:

Residential real estate: apartments, private houses.
Commercial real estate: hotels, office spaces, restaurant and cafe halls, cinemas, retail spaces, staff lounges.
Public buildings: hospitals, schools, universities, sports complexes.

The QUIET with its mixed impeller and two-speed single-phase ball bearing motor combines the advantages of centrifugal (high pressure) and axial (high airflow) fans.

Lightweight and durable polypropylene foam housing with noise-absorbing inserts eliminates vibrations transmitted from the fan to the ducts, reducing fan noise.
Mounting is carried out without additional brackets thanks to the metal rail. Installation is possible on both horizontal and vertical planes.
Stamped galvanized steel flanges with rubber seals simplify installation into the duct system.

Specifications:

Performance: from 180 to 1560 m³/h
Operating temperature: from +1 to +40 °С
Ingress protection rating: IPX4

Brand

VentEurope

Base model

Product type

Commercial fans

Power consumption min, W

Power consumption max, W

Performance max, m3/h

148

Pressure min, Pa

100

Pressure max, Pa

190

Noise level min, dB(A)

Noise level max, dB(A)

Current consumption, A

0.11

Frequency, Hz

Width, mm

236

Overall depth, mm

690

Protection class

IPX4

Voltage, V

220

Installation method

Duct

Working mechanism

Axial

Control

Mechanical

Housing material

Polypropylene

Warranty

3 years

Quantity in transport package

1 pcs

Flexible

Vendor code

QUIET 100 2SP

Series

QUIET

Performance min, m3/h

106

Height, mm

233

Material

Polypropylene

Color (decorative)

Black

Country of manufacture

Turkey

Eccentric
