RAD 355

Out of Stock

/ шт

RAD 355

SKU RAD 355

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Base model — N

Product type — Commercial fans

Performance max, m3/h — 2200

Current consumption, A — 2.5

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

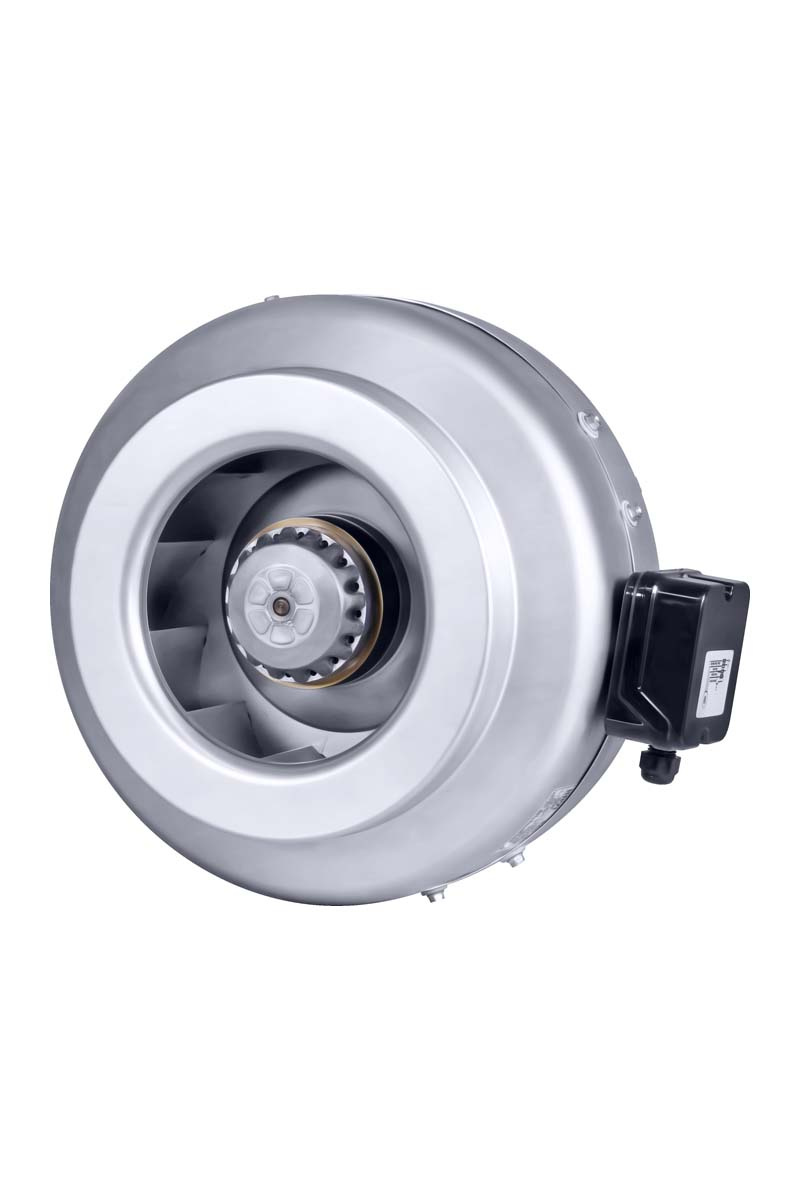

Application: The RAD inline centrifugal fan is a high-capacity, durable solution for commercial and industrial ventilation systems. It can be installed in gyms and cafés (but not in kitchen areas).

Purpose: removal of humid air, unpleasant odors, and other non-explosive air–gas mixtures, for duct mounting in supply and exhaust ventilation systems.

Mounting:

Suitable for installation at any point of a supply and exhaust ventilation system, at any angle.
Mounting bracket and self-tapping screws are included.

Design features:

Housing and impeller are made of galvanized steel.
Equipped with a single-phase, ball-bearing external-rotor motor driving a backward-curved impeller.
Connection is made through a sealed terminal box with a hinged lid.

Specifications:

Capacity: 2200 m³/h

Noise level: 56 dB(A)

Rotation frequency: 2480 RPM

(Values given at 0 Pa.)

Operating temperature: -20 to +50 °C

Warranty: 2 years.

Brand

VentEurope

Base model

Product type

Commercial fans

Performance max, m3/h

2200

Current consumption, A

2.5

Frequency, Hz

Protection class

IP44

Power consumption, W

380

Voltage, V

230

Installation method

Round duct mounted

Ventilation principle

Radial fan

Housing material

Galvanized steel

Bushing material

Galvanized steel

Warranty

1 year

Quantity in transport package

1 pcs

Flexible

Vendor code

RAD 355

Series

RAD

Performance min, m3/h

2200

Noise level, dB(A)

Pressure, Pa

550

Color (decorative)

Silver

Country of manufacture

Turkey

Form type

Round

Eccentric
