SQUALL GDF 160

Out of Stock

/ шт

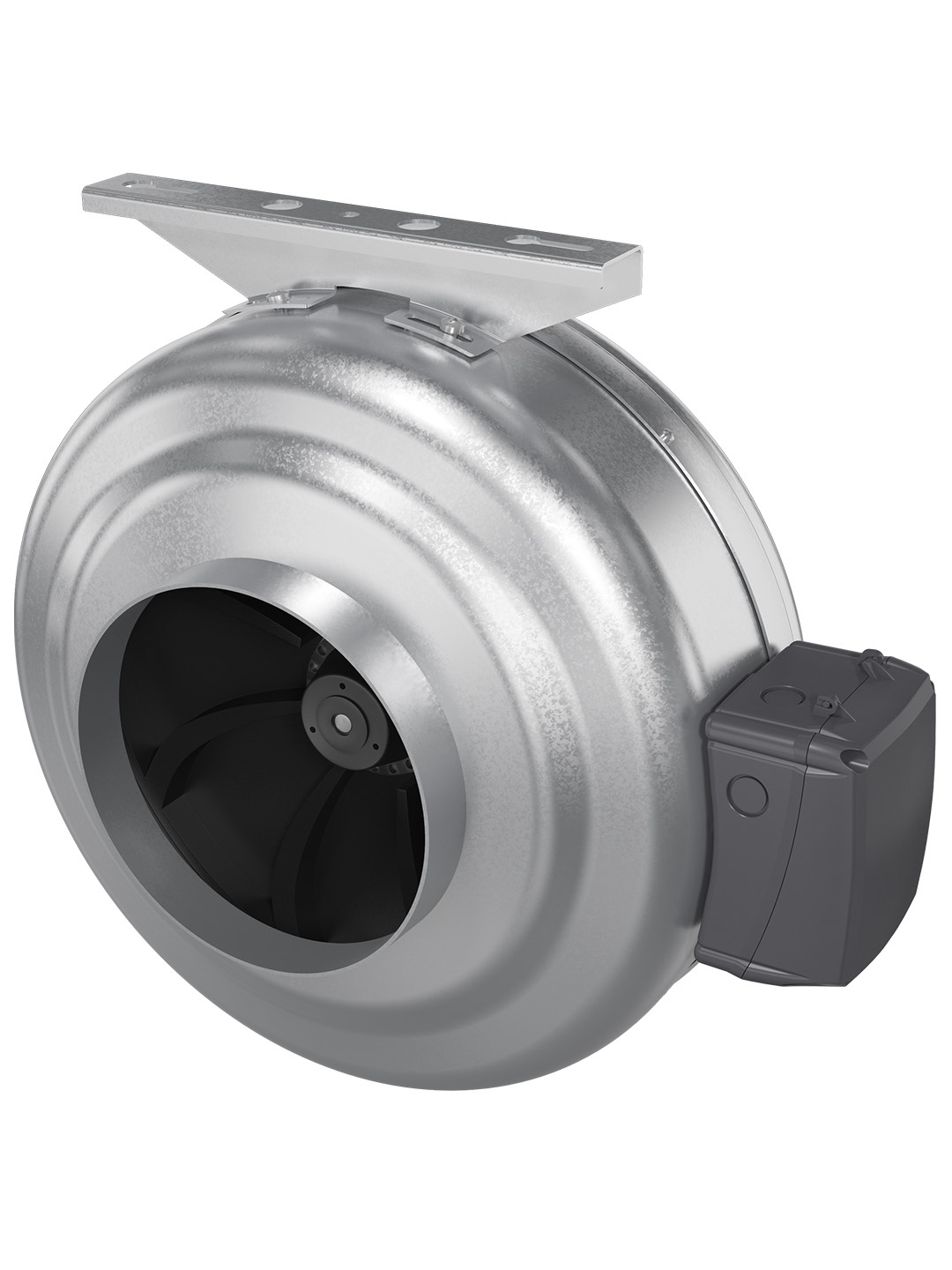

SQUALL GDF 160

SKU SQUALL GDF 160

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Product type — Commercial fan

Current consumption, A — 0.46

Design Features — 2-year warranty, Ball-bearing motor, Galvanized steel, Ingress protection against water splashed from all directions, Mounting with self-tapping screws, Self-resettable overheating protection with a restart

Installation diameter, mm — 160

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

Application: The SQUALL inline centrifugal fan is a high-capacity, durable solution for commercial and industrial ventilation systems. It can be installed in gyms and cafés (but not in kitchen areas).

Purpose: removal of humid air, unpleasant odors, and other non-explosive air–gas mixtures, for duct mounting in supply and exhaust ventilation systems.

Mounting:

Suitable for installation at any point of a supply and exhaust ventilation system, at any angle.
Mounting bracket and self-tapping screws are included.

Design features:

Housing made of galvanized steel; impeller made of composite plastic.
Equipped with a single-phase, ball-bearing external-rotor motor driving a backward-curved impeller.
Self-resettable overheating protection with a restart
Connection is made through a sealed terminal box with a hinged lid.

Specifications:

Capacity: 655 m³/h

Noise level: 60 dB(A)

Pressure: 390 Pa

Rotation frequency: 2578 RPM

Operating temperature: -25 to +70 °C

Warranty: 2 years.

Brand

VentEurope

Product type

Commercial fan

Current consumption, A

0.46

Design Features

2-year warranty, Ball-bearing motor, Galvanized steel, Ingress protection against water splashed from all directions, Mounting with self-tapping screws, Self-resettable overheating protection with a restart

Installation diameter, mm

160

External diameter

160

Width, mm

235

Overall depth, mm

Power consumption, W

102

Voltage, V

220

Installation method

Duct

Ventilation principle

Supply and exhaust

Control

Mechanical

Housing material

Galvanized steel

Warranty

2 years

Color

Silver

Quantity in transport package

1 piece

Motor type

Single phase

Vendor code

SQUALL GDF 160

Series

SQUALL

Height, mm

333

Noise level, dB(A)

Capacity, m3/h

655

Pressure, Pa

390

Contents

Fan assembly, passport/operating instructions, packaging box, bracket, screw with drill, lightning rod (or seal - depending on the configuration)

Placing

Channel

Material

Galvanized steel

Blade material

Composite plastic

Country of manufacture

Turkey

Form type

Round
