TWISTER 160

Out of Stock

/ шт

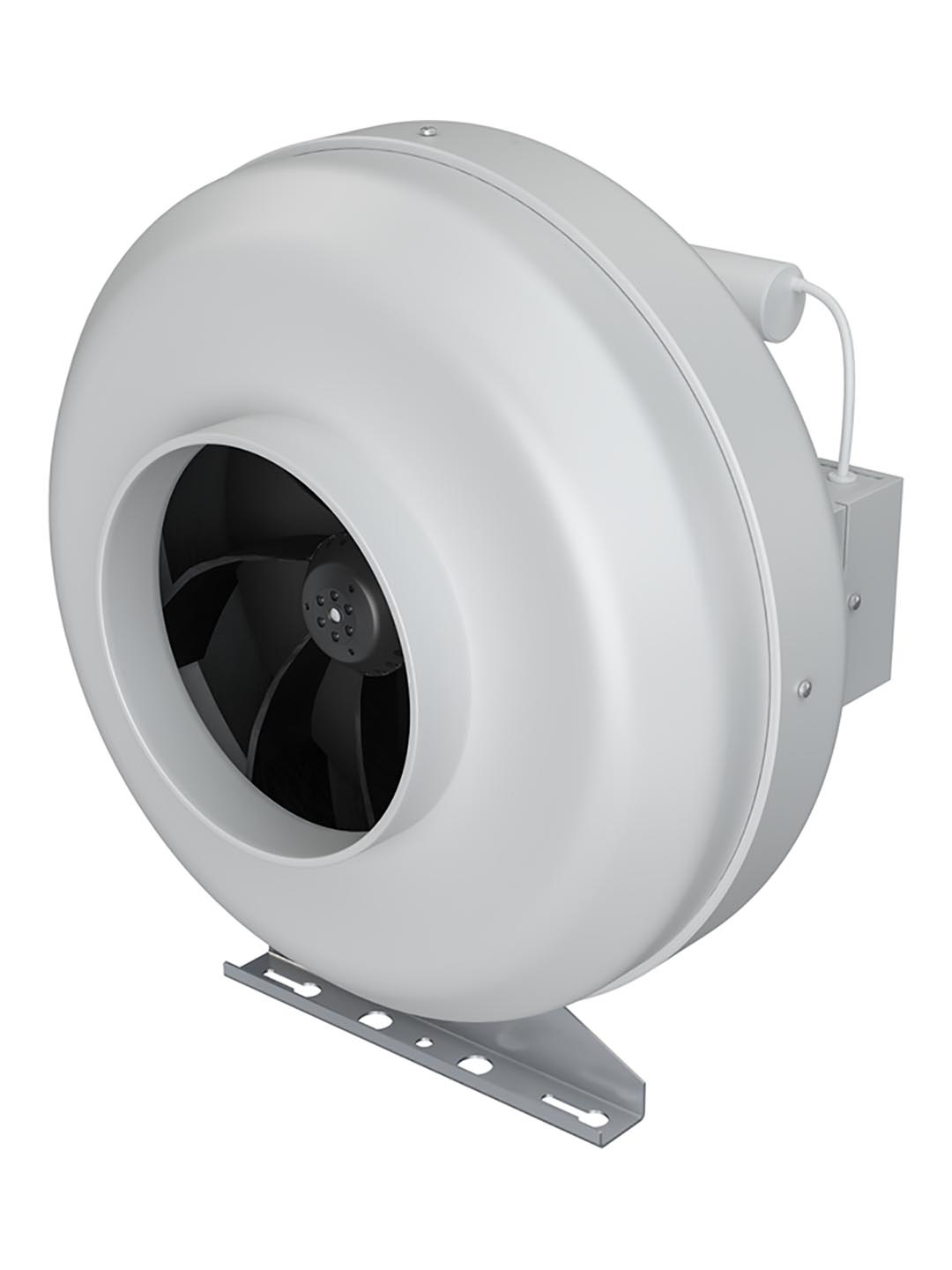

TWISTER 160

SKU TWISTER 160

COMPARE

IN COMPARISON

Characteristics

Brand — VentEurope

Product type — Commercial fan

Current consumption, A — 0.39

Frequency, Hz — 50

Design Features — 2-year warranty, Ball-bearing motor, Ingress protection against water splashed from all directions, Mounting with self-tapping screws, Plastic, Self-resettable overheating protection with a restart

/ шт

Out of Stock

Maximum quantity selected, available for order

Description

Characteristics

Reviews

Delivery

Application: The TWISTER inline centrifugal fan can be installed in the supply and exhaust ventilation systems of gyms, offices, cafés (except the kitchen areas), and other commercial and industrial facilities. The plastic housing allows for installation in rooms with high humidity, such as greenhouses.

Purpose: removal of humid air, unpleasant odors, and other non-explosive air–gas mixtures, for duct mounting in supply and exhaust ventilation systems.

Mounting:

Suitable for installation at any point of a supply and exhaust ventilation system, at any angle.
Mounting bracket and self-tapping screws are included.

Design features:

Housing made of high-quality durable plastic.
Equipped with a single-phase, ball-bearing external-rotor motor driving a backward-curved impeller.
Self-resettable overheating protection with a restart
Stepless or stepwise speed control is possible using the controller. Several fans can be connected to one control device.

Specifications:

Capacity: 720 m³/h

Noise level: 57 dB(A)

Pressure: 440 Pa

Rotation frequency: 2500 RPM

Operating temperature: -25 to +70 °C

Warranty: 2 years.

Brand

VentEurope

Product type

Commercial fan

Current consumption, A

0.39

Frequency, Hz

Design Features

2-year warranty, Ball-bearing motor, Ingress protection against water splashed from all directions, Mounting with self-tapping screws, Plastic, Self-resettable overheating protection with a restart

Installation diameter, mm

159

External diameter

159

Width, mm

340

Overall depth, mm

229

Protection class

IP 44

Net weight, kg

3.8

Power consumption, W

Voltage, V

220

Installation method

Duct

Ventilation principle

Supply and exhaust

Control

Mechanical

Warranty

2 years

Color

White

Quantity in transport package

1 piece

Vendor code

TWISTER 160

Series

TWISTER

Height, mm

340

Noise level, dB(A)

Capacity, m3/h

720

Pressure, Pa

440

Contents

Fan assembly, passport/operating instructions, packaging box

Placing

Channel

Material

Plastic

Color (decorative)

White

Country of manufacture

Turkey

Form type

Round
